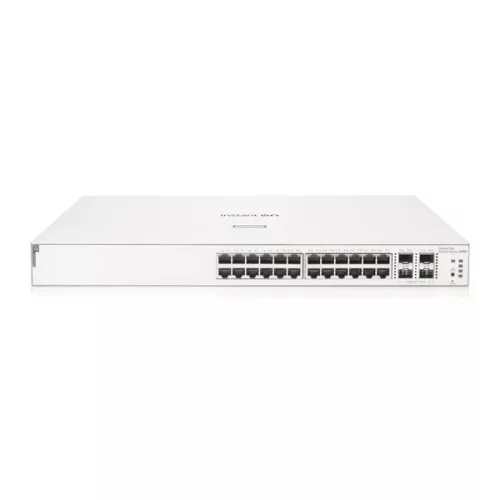

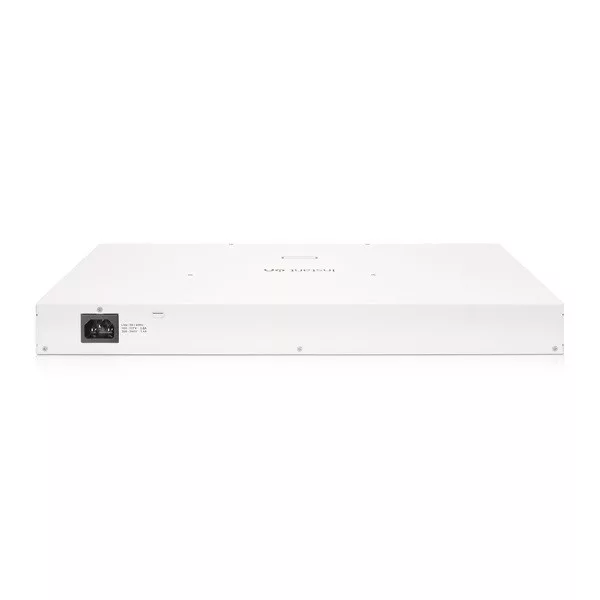

HPE Aruba IOn 1930 24G 4SFP+ 370W Sw

Csomagajánlatok

• Részletek
• Adatok

Részletek

Product	1930 24G PoE 4SFP+ 370W Switch
Part Number	JL684B
Switch Type	Fixed Port
Network OS	Aruba Instant On
Routing / Switching	Layer 2 Only
Management	Smart Managed
Included Accessories
Included Accessories	N/A
Physical Properties
Dimensions	17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm) (1U height)
Weight	8.23 lb (3.73 kg)
Port Types
LAN Ports	24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Dual Personality Ports	N/A
1/2.5/5/10GbE	N/A
SFP Ports	N/A
SFP+ Ports	4 SFP+ 1/10GbE ports
SFP28 Ports	N/A
SFP56 Ports	N/A
XFP Ports	N/A
X2 Ports	N/A
CX4 Ports	N/A
10GBASE-T Ports	N/A
QSFP+ Ports	N/A
QSFP28 Ports	N/A
QSFP56 Ports	N/A
QSFP-DD  Ports	N/A
Module Slots	N/A
Console Port	N/A
Power Supplies
Power supply slots	N/A
Power supply requirements	Internal power supply
Memory and Processor
Memory and Processor	ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Gigabit Module	N/A
10Gb Module	N/A
Management Module	N/A
Fabric Module	N/A
I/O Module	N/A
Mounting
Mounting	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
Performance
100 Mb Latency	< 4.7 uSec
1000 Mb Latency	< 2.4 uSec
10 Gbps Latency	< 1.3 uSec
40 Gbps Latency	N/A
Throughput	95.23 Mpps
Switching Capacity	128 Gbps
Switch Fabric Speed	N/A
Routing Table Size	32 static entries
MAC Address Table Size	16000 entries
MACsec Capable Hardware	N/A
MACsec Software Support	N/A
MACsec with EAP-TLS	N/A
MACsec Capable Uplink Ports	N/A
Electrical Characteristics
Description	N/A
Voltage	100 - 127 / 200 - 240 VAC
Current	4.8/2.4 A
Frequency	50/60 Hz
Maximum Power Consumption	440.4 W
Maximum Heat Dissipation	1502.7 BTU/hr (1585.4 kJ/hr)
PoE power	370 W Class 4 PoE
Notes	N/A
Management
Management	Aruba Instant On Portal, Web browser, SNMP Manager

Adatok

EAN:

JL684B#ABB

Gyártói cikkszám:

JL684B

Gyártó:

HP NW

EAN:

JL684B#ABB

Garancia:

1188 hónap

Garancia (hónap):

1188

Termék gyártója:

HP NW

Tömeg:

4 kg/db
