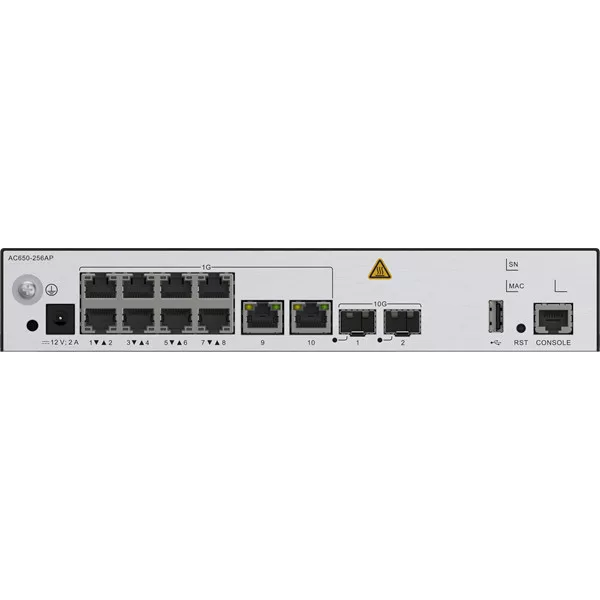

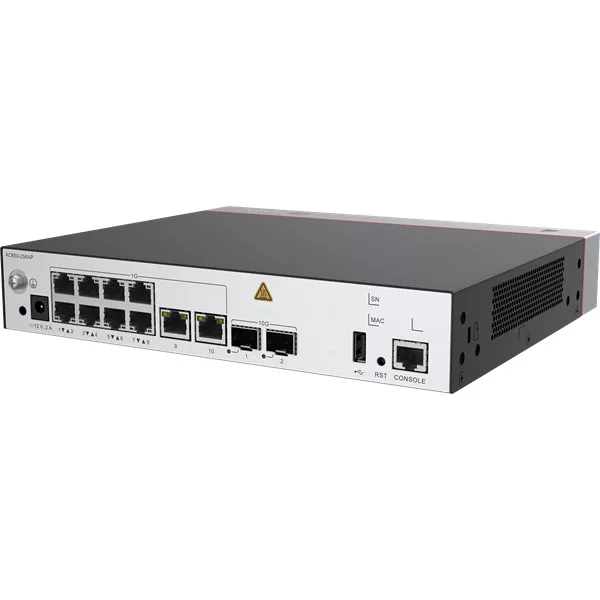

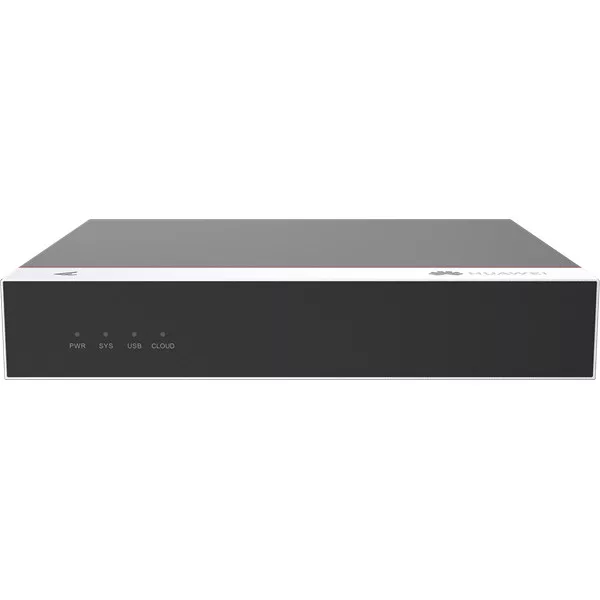

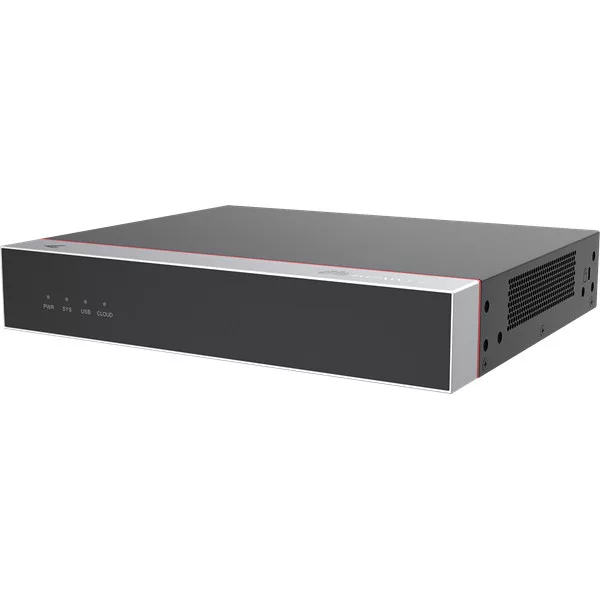

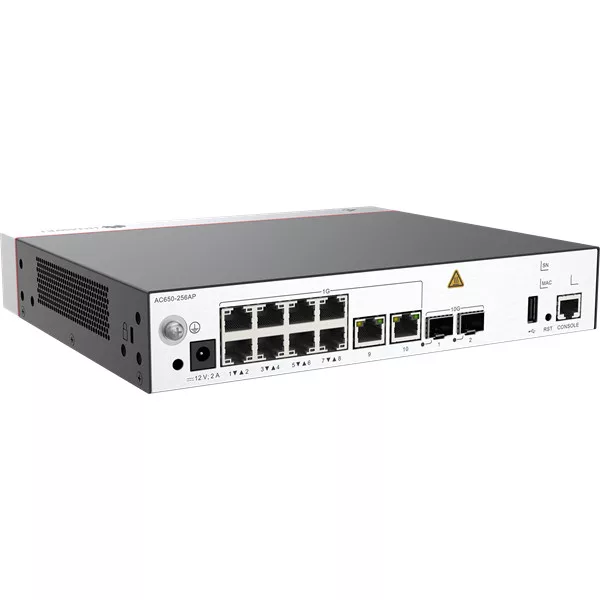

Huawei eKit Vezeték Nélküli Access Kontroller 10x1000Mbps + 2x10GE (SFP+) + 1konzol port, max 256 AP - AC650-256AP

Csomagajánlatok

• Részletek
• Adatok

Részletek

Integrated fixed device	Y
First supported version	V200R022C10
Installation Type	Rack,Desk,Wall
Dimensions without packaging (H x W x D) [mm(in.)]	Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.) Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.)
Weight without packaging [kg(lb)]	1.9kg
CPU	4Core, 1.2GHz
Memory	DDR4: 2 GB
Storage	Nand FLASH 1GB
Console port	RJ45
Maximum power consumption [W]	23.58
Maximum heat dissipation [BTU/hour]	80.45
Power supply mode	DC adapter
Service port surge protection [kV]	6 kV in common mode
Types of fans	None
Maximum number of physical ports on the entire device	2 x 10GE (SFP+) + 10 x GE (RJ45)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	Ground
USB	1 x USB 2.0 (host type A) port
MTBF [year]	50
MTTR [hour]	2

Adatok

EAN:

6901443425372

Gyártói cikkszám:

02355NCH

Gyártó:

Huawei eKit

EAN:

6901443425372

Garancia:

36 hónap

Portok száma:

12

Rack-be szerelhető:

Van

SFP port:

2

PoE (Power over Ethernet):

Nincs

Switch típus:

Fixed port

Port típusa:

1Gb Réz;10Gb SFP+

Garancia (hónap):

36

Termék gyártója:

Huawei eKit

Tömeg:

2,48 kg/db
