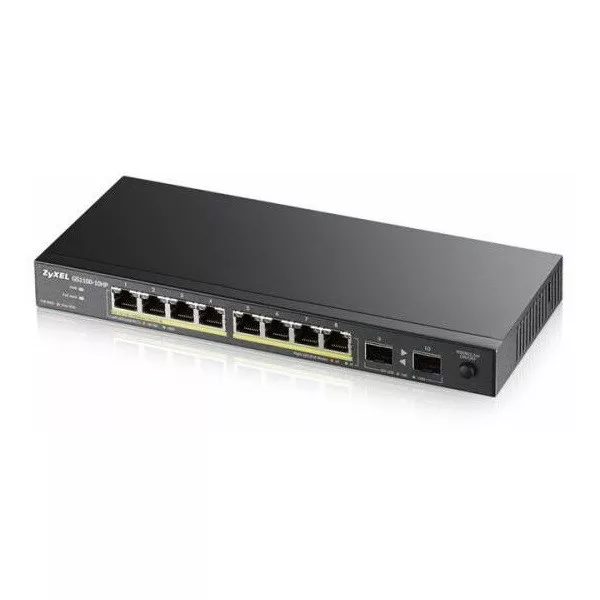

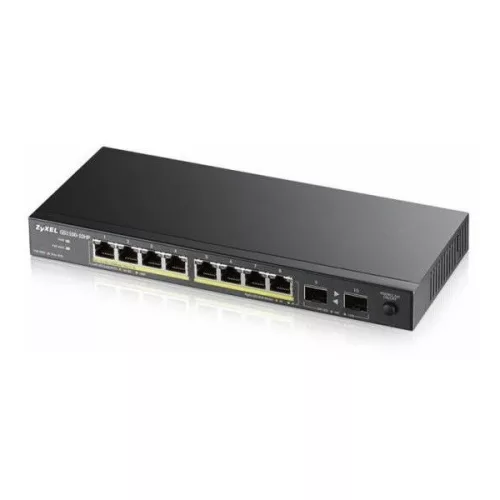

ZYXEL Switch 8x1000Mbps (8xPOE) + 2xGigabit SFP Fémházas Asztali, GS1100-10HP-EU0102F

Csomagajánlatok

• Részletek
• Adatok

Részletek

  Collapse All

	GS1100-10HP	GS1100-16	GS1100-24E	GS1100-24
Description
Product name	8-port GbE Unmanaged PoE Switch with GbE Uplink	16-port GbE Unmanaged Switch	24-port GbE Unmanaged Switch	24-port GbE Unmanaged Switch with GbE Uplink
Switch class	Unmanaged	Unmanaged	Unmanaged	Unmanaged
Port Density
Total port count	10	16	24	26
100/1000 Mbps	8	16	24	24
Gigabit SFP	2	-	-	2
PoE
802.3at PoE ports	8	-	-	-
Total PoE budget (watts)	130	-	-	-
Performance
Switching capacity (Gbps)	20	32	48	52
Forwarding rate (Mpps)	14.88	23.8	35.7	38.7
Packet buffer (byte)	256 K	525 K	525 K	525 K
MAC address table	8 K	8 K	8 K	8 K
Jumbo frame	9 K	9 K	10 K	10 K
Auto MDI/MDI-X	Yes	Yes	Yes	Yes
802.1p CoS	Yes	Yes	Yes	Yes
VLAN packet pass-through	Yes	Yes	Yes	Yes
Power
Input voltage	100 - 240 V AC, 50/60 Hz	100 - 240 V AC, 50/60 Hz	100 - 240 V AC, 50/60 Hz	100 - 240 V AC, 50/60 Hz
Power supply	External	Internal	Internal	Internal
Max. power consumption (watt)	156.1	10	13	14.5
Physical Specifications
Dimensions (WxDxH)(mm/in.)	250 x 104 x 27/9.84 x 4.10 x 1.06	215 x 133 x 42/8.46 x 5.24 x 1.65	267 x 162 x 42/10.51 x 6.38 x 1.65	441 x 131 x 44/17.36 x 5.16 x 1.73
Weight (kg/lb.)	0.73/1.6	0.9/1.98	1.5/3.3	1.8/3.96
Included accessories	Power adapter Power cord Wall-mount kit	Power cord Wall-mount kit Rack mounting kit*	Power cord Wall-mount kit Rack mounting kit*	Power cord Rack mounting kit*
Green Features
Fanless	Yes	Yes	Yes	Yes
Environmental Specifications
Operating Temperature	0°C to 50°C / 32°F to 122°F	0°C to 40°C / 32°F to 104°F	0°C to 40°C / 32°F to 104°F	0°C to 40°C / 32°F to 104°F
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	-40°C to 70°C/-40°F to 158°F
Storage Humidity	10% to 95% (non-condensing)
MTBF (hr)	1,000,070	1,156,942	366,919	388,378
Heat dissipation (BTU/hr)	89	32.86	43.53	51.25

Adatok

EAN:

760559129460

Gyártói cikkszám:

GS1100-10HP-EU0102F

Gyártó:

ZYXEL

EAN:

760559129460

Garancia:

60 hónap

Portok száma:

10

SFP port:

2

PoE (Power over Ethernet):

Van

Switch típus:

Fixed port

Menedzselhetőség:

Nem menedzselhető

Garancia (hónap):

60

Termék gyártója:

ZYXEL

Tömeg:

1,73 kg/db
