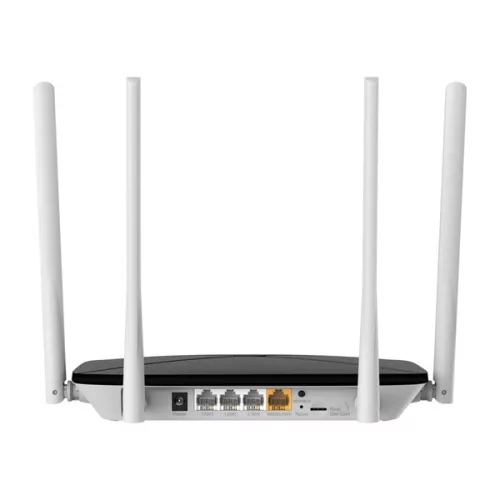

MERCUSYS 3G/4G Modem + Wireless Router AC1200 1xWAN/LAN(100Mbps) +3xLAN(100Mpbs), MB135-4G

EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

UN:

FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 ΜHz)

TDD-LTE: B40 (2300 MHz)

HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)

AC1200

300 Mbps

867 Mbps

IEEE 802.11ac/a/b/g/n

5 GHz, 2.4 GHz

11g 6Mbps: -95dBm

11g 54Mbps: -77dBm

11n HT20 MCS7: -74dBm

11n HT40 MCS7: -71dBm

11a 6Mbps: -92dBm

11a 54Mbps: -75dBm

11ac VHT20 MCS8: -70dBm

11ac VHT40 MCS9: -65dBm

11ac VHT80 MCS9: -61dBm

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

WPA-PSK / WPA2-PSK

smart connect
WPS
Wireless Schedule
Wireless Clients Statistics

AC1200 Wireless Dual Band 4G LTE Router (MB135-4G)

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

3G/4G Router
Wireless Router

4G Preferred
4G Only
3G Only

Data Roaming
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

ALG
Virtual Server
Port Triggering
UPnP
DMZ

IPv4, IPv6

Data Statistics
Data Limit

Time Control
Website Filtering

2.4 GHz Guest Network
5 GHz Guest Network

Server
DHCP Client List
Address Reservation

MERCUSYS DDNS
DynDns
NO-IP

OpenVPN
PPTP
VPN Connections

Inbox
New Message
Outbox
Drafts

√

IPv4 SPI Firewall
DoS Protection
Service Filtering
Access Control
IP & MAC Binding
IPv6 Firewall

Time Settings
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings
SNMP Settings
Traffic Monitor

MERCUSYS APP
Web GUI

English
German
Spanish
Greek
French
Italian
Polish
Indonesian
Russian
Thai

√

 219 × 140 × 32 mm

(8.62 × 5.51 × 1.26 in)

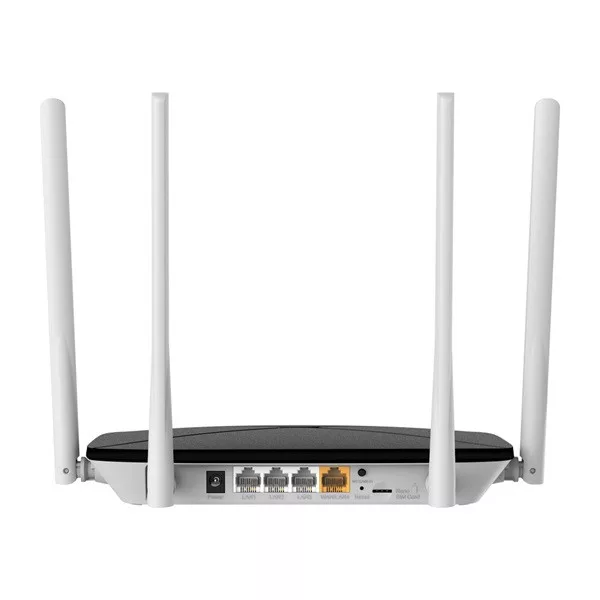

1× 10/100Mbps LAN/WAN Port

3× 10/100Mbps LAN Ports

1× Nano SIM Card Slot

2× External Detachable 4G LTE Antennas,
2× External Wi-Fi Antennas

WPS/Wi-Fi?Reset Button

12V/1A

1× Power
1× Internet
1× LAN
3× Signal

1× 10/100 Mbps LAN/WAN Port +

3× 10/100 Mbps LAN Ports

Cat 4
150/50Mbps DL/UL
